Freeze dryers | Pilot and technical pilot units
Freeze dryers of this series are designed for the laboratory or product development. The stand-alone units have an ice capacity of 5 up to 40kg and a floor space of up to 2.7m² depending on the unit/design. Larger devices can be found under the category Production units.
Features / options of this series:
- Two-chamber system
- Compact stand-alone unit
- Ideal for process development /
Research / Small productions - Visible capacitor
- Rectangular drying chamber
- Coolable and heatable stainless steel shelves
- Microprocessor control
- Air-cooled or water-cooled cooling system
- GMP-FDA compliant
- Wall mounting (gas-tight)
- Isolator- Glovebox Coupling
- Closing device for vials
- Different Control systems, visualization,
PC control - EX-protection version,
solvent ejection - Vacuum control, pressure rise measurement
- CIP and SIP (from sublimator 15)

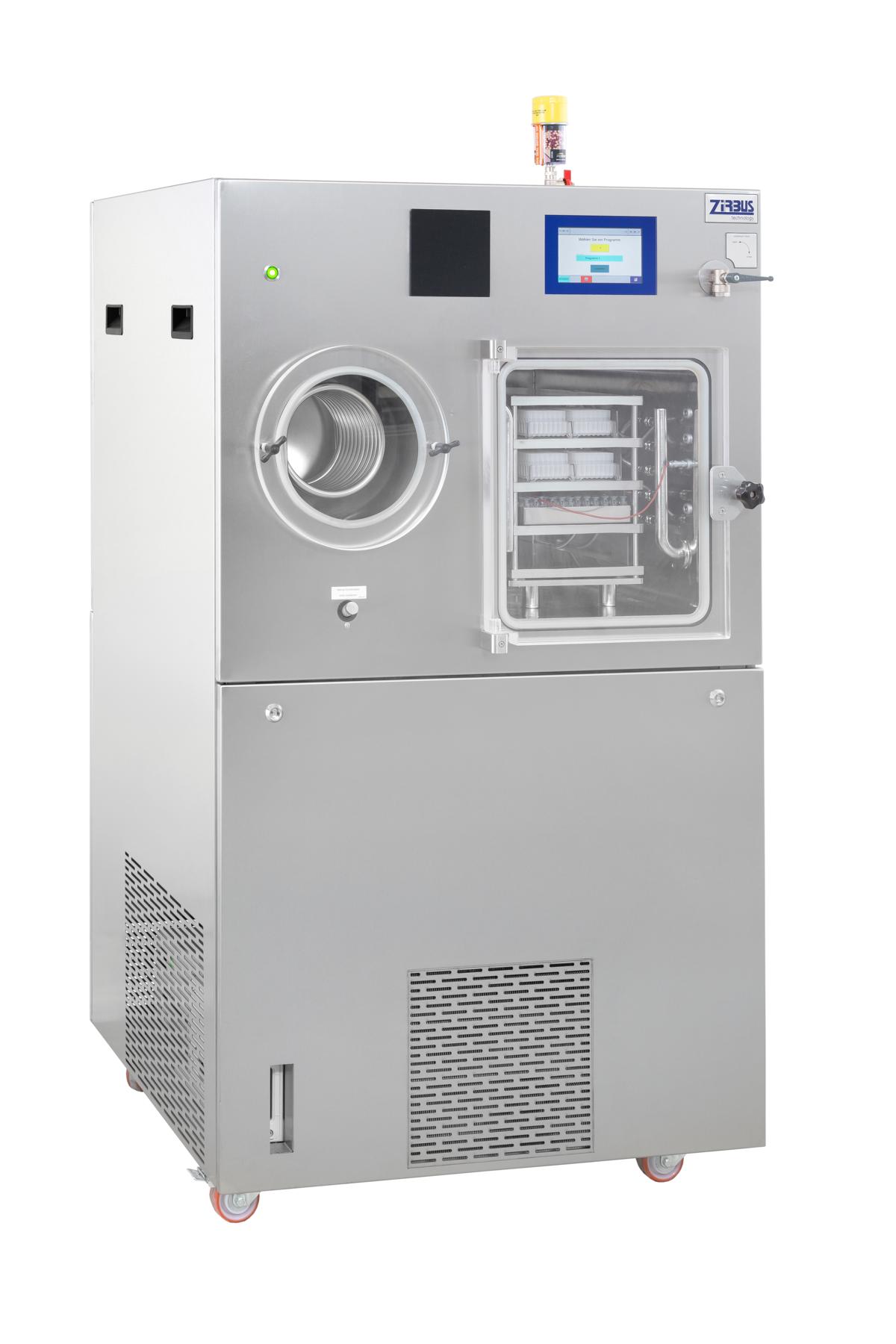

Freeze-drying unit Sublimator 5
0.18m² to 0.36m² Product storage space
- External dimensions WxHxD: 970 x 1700 x 750mm (standard version)
| Drying chamber | Ice condenser | ||
|---|---|---|---|
| Dimensions (WxHxD) | 350 x 408 x 547 mm | Dimensions | Ø 250 x 370mm |
| Volume | 78 litres | Volume | 18 litres |
| Floor-space size |
200 x 450 mm | Capacity | 4 kg / 24 h max 5kg |
| Numbers | 2 to 4 | Temperature | -50°C / – 80°C |
| Max. Footprint | 0,36 m² | Defrosting | hot gas or steam |
| Floor-space Temperature |
-40 / -60°C to + 60°C |
||
Freeze-drying unit Sublimator 15
0.375m² to 1.12m² Product storage space
- External dimensions WxHxD: 1300 x 1850 x 850 mm (standard version)
| Drying chamber | Ice condenser | ||
|---|---|---|---|
| Dimensions (WxHxD) | 400 x 600 x 650 mm | Dimensions | Ø 320 x 600 mm |
| Volume | 156 litres | Volume | 50 litres |
| Floor-space size |
320 x 500 mm (tray drying) 250 x 500mm (Vial drying) |
Capacity | 10 kg / 24 h max 15kg |
| Numbers | 3 to 7 | Temperature | -55°C / -80°C |
| Max. Footprint | 1,12 m² | Defrosting | hot gas or steam |
| Floor-space Temperature |
-40/-60°C to +60°C |
||

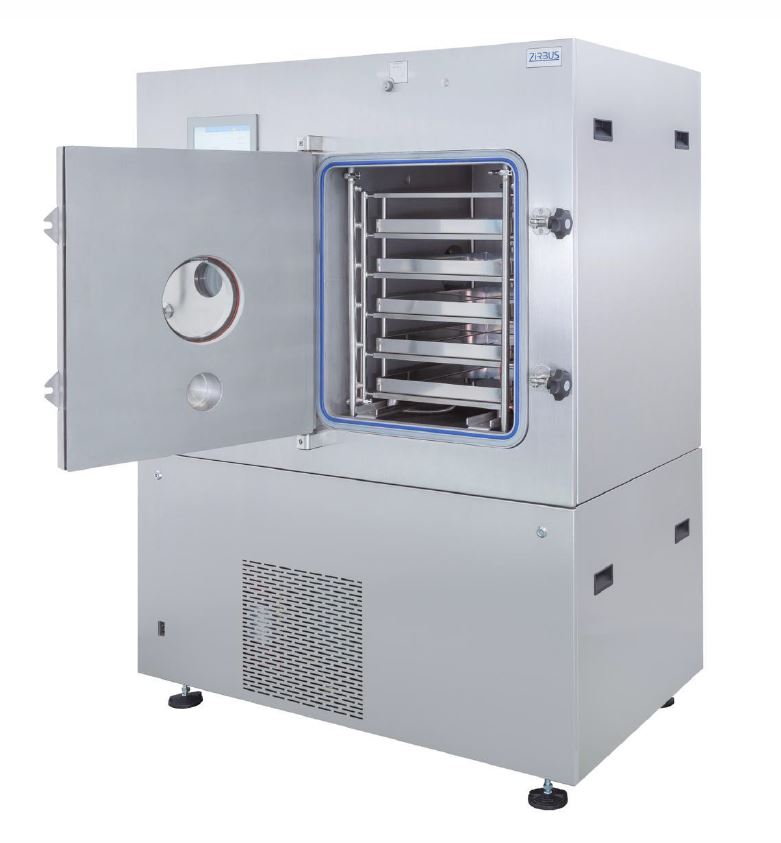

Freeze-drying unit Sublimator 25
0.63m² to 2.02m² Product storage space
- External dimensions WxHxD: 1500 x 19200 x 850mm (standard version)
| Drying chamber | Ice condenser | ||
|---|---|---|---|
| Dimensions (WxHxD) | 500 x 650 x 800 mm | Dimensions | Ø 400 x 750 mm |
| Volume | 260 litres | Volume | 95 litres |
| Floor-space size |
420 x 600 mm (tray drying) 350 x 600mm (Vial drying) |
Capacity | 20kg / 24h max. 25kg |
| Numbers | 3 to 8 | Temperature | -55°C / -80°C |
| Max. Footprint | 2,02 m² | Defrosting | hot gas or steam |
| Floor-space Temperature |
-40 / -60°C to +60°C |
||
Freeze-drying unit Sublimator 40
1,69m² to 2.70m² Product storage space
- External dimensions WxHxD: 980 x 1920 x 1650mm (standard version)
| Drying chamber | Ice condenser | ||
|---|---|---|---|
| Dimensions (WxHxD) | 700 x 700 x 850 mm | Dimensions | Ø 400 x 900 mm |
| Volume | 260 litres | Volume | 113 litres |
| Floor-space size |
450 x 750 mm (tray drying) 450 x 750mm (Vial drying) |
Capacity | 30kg / 24h max. 40kg |
| Numbers | 5 to 8 | Temperature | -55°C / -80°C |
| Max. Footprint | 2,70 m² | Defrosting | hot gas or steam |
| Floor-space Temperature |
-40 / -60°C to +60°C |
||
