Laboratory Freeze Dryer VaCo-Series
The VaCo series is the entry into freeze drying systems and lyophilisers. Thanks to its modular design, the laboratory freeze dryer is perfectly suited for a wide range of tasks in your laboratory. The units are available with either a -50°C condenser or -80°C condenser and can be offered with the following options:
- Acrylic glass chamber – incl. base plate and gasket
- Stainless steel chamber – when using organic solvents
- Aluminium rack – with heated or unheated shelves
- Drying trays – suitable for the shelves
- Chamber cover – on request with vacuum connections (NS 29/32)
- Dry rack – stainless steel, incl. 3-way valve (NS 29/32)
- Ampoule adapter– to extend the vacuum valve, for 16 ampoules
- Closing system – For closing vials under vacuum atmosphere
- Vacuum control – for setting different vacuum values
- Vacuum pump – as oil-sealed rotary vane pump or chemical hybrid vacuum pump
- Control – via 4,3″ colour touch display
Laboratory/Production freeze dryer VaCo 10

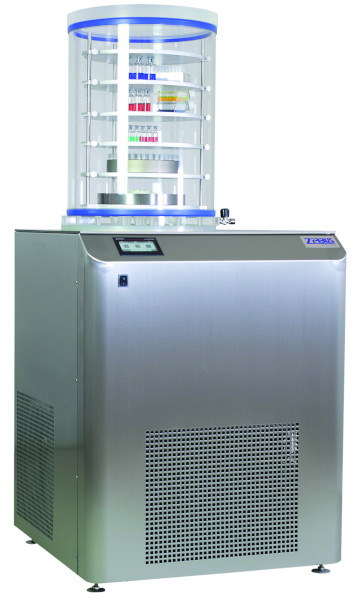

VaCo 10 with acrylic drying chamber and inner rack
| VaCo 10, -50°C | VaCo 10, -80°C | |
|---|---|---|
| Dimensions of condenser |
Ø 400 x 400 mm | Ø 400 x 400 mm |
| Volume | 50 litres | 50 litres |
| Temperature of condenser |
-50°C | -80°C |
| Ice capacity | 10kg/24h | 10kg/24h |
| Max. ice capacity |
12 kg | 12 kg |
| Cooling system | one- stage, Refrigerant according to the latest F-Gas regulation | two-stage, Refrigerant according to the latest F-Gas regulation |
| Outer dimensions (wxhxd) |
700 x 900 x 700 mm | 700 x 900 x 700 mm |
| Weight of basic unit | 75 kg | 90 kg |
| Electical connection | 230 V, 50/60 Hz | 400 V, 50/60 Hz |
