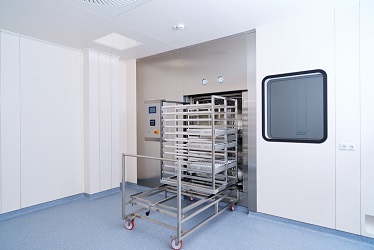

Production Autoclaves for the laboratory, pharmaceutical, food industry and animal husbandry
from 640 litres chamber volume
The devices are high-performance and cost-effective to use in the laboratory, pharmaceutical and food industries and in animal husbandry. Through the diverse range of options and variability of the chamber and exterior dimensions, they offer the correct and standardized solution for every field of application. Thus, because of our HP0 approval and our own construction department, we can manufacture and deliver autoclaves with customer-specific dimensions.
Large autoclaves | 6H series | 640 to 1,234 liters chamber volume
| HST 9x6x9 | HST 9x6x12 | HST 9x6x14 | HST 6x9x16 | HST 6x9x18 | |
|---|---|---|---|---|---|
| Effective Space mm |
(H) 1000 (W) 660 (D) 970 |
(H) 1000 (W) 660 (D) 1270 |
(H) 1000 (W) 660 (D) 1470 |
(H) 1000 (W) 660 (D) 1670 |
(H) 1000 (W) 660 (D) 1870 |
| Chamber Volume Litres |
640 | 838 | 970 | 1,100 | 1,234 |
Large autoclaves | 8H series | 1,080 to 2,463 liters chamber volume
| HST 10x8x12 | HST 14x8x12 | HST 16x8x13 | HST 14x8x20 | |
|---|---|---|---|---|
| Effective Space mm |
(H) 1000 (W) 850 (D) 1270 |
(H) 1400 (W) 850 (D) 1270 |
(H) 1600 (W) 850 (D) 1370 |
(H) 1400 (W) 850 (D) 2070 |
| Chamber Volume Litres |
1,080 | 1,511 | 1,863 | 2,463 |
Large autoclaves | 10H series | 1,580 to 3,087 liters chamber volume
| HST 12x10x12 | HST 12x10x16 | HST 12x10x20 | HST 12x10x24 | |
|---|---|---|---|---|
| Effective Space mm |
(H) 1250 (W) 1000 (D) 1270 |
(H) 1250 (W) 1000 (D) 1670 |
(H) 1250 (W) 1000 (D) 2070 |
(H) 1250 (W) 1000 (D) 2470 |
| Chamber Volume Litres |
1,580 | 2,080 | 2,587 | 3,087 |
Further chamber sizes on request. We can offer different dimensions according to the customer’s requirements. Up to 10m² available.
The following options are available to adapt the autoclaves exactly to your tasks:
- Siemens SPS control S7 series 300
- House steam version for connection to a central steam supply with steam management system
- Own steam version by means of built-in electric pure steam generator
- Version of a pit installation for ground-level loading of the autoclave
- Double door version with gas-tight separation for safety laboratories and clean rooms
- GMP-compliant design according to DIN 58950 and FDA regulations
- Fast water recooling via a large double shell. In conjunction with the support pressure control via a sterile air filter, ensures the shortest possible recooling times for liquid media.
- Connection to a house supplied ring cooling system for water saving. The heat exchange takes place via a plate heat exchanger and saves up to 80% water.
- Recirculation fan further shortens the cooling time and offers the possibility of sterilisation in a steam-air mixture.
- Hot water sprinkler process (HWSP) for fast and gentle sterilization of liquids in closed vessels.
- Spray cooling for rapid cooling of liquids in closed vessels.

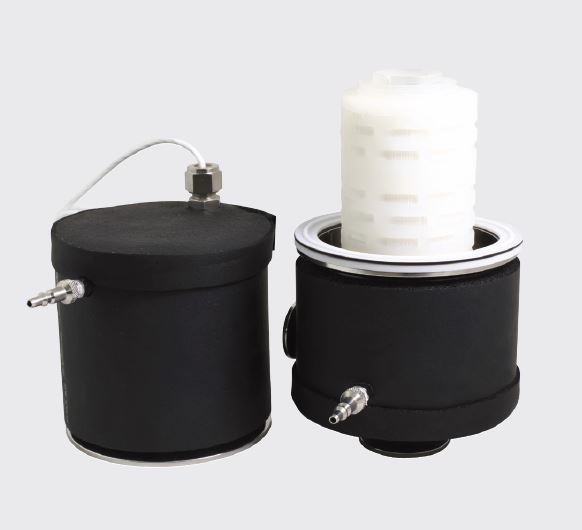

- Exhaust air filter with condensate inactivation for the sterilisation of infectious goods of the risk classes S2 and S3. Filter retention rate: > 99.5% 0.02µm
- Vacuum pump set with water saving device for safe evacuation of air from sterile material by means of single-stage or fractional prevacuum. Enables dry removal of the sterile material at the end of the process.
- Transport and charge trolley for ergonomic loading and unloading.
Documentation Features
- Network-compatible digital charge recording and user management system in connection with Siemens WinCC FDA 21 CFR Part 11 compliant.
- 6-channel colour line recorder for control-independent batch documentation on 120mm wide plain paper.
- 10-channel screen recorder for FDA 21 CFR Part 11 compliant digital batch documentation, network-compatible.
- USB stick for storing up to 1,000 charges on an USB stick. The data can be read out on a PC for evaluation.
- Documentation software “Sterilog” for direct documentation of the sterilization process on a PC. Communication takes place via an Ethernet interface.
- Qualification DQ, IQ and OQ according to DIN 589510 and FDS, HDS, SDS for pharmaceutical use
