aCOLyte 3 HD is the latest affordable, automated colony counting device from Synbiosis. The aCOLyte 3 HD is available in one configuration and features new simple-to-use software that greatly improves efficiency, reliability and productivity over previous models.

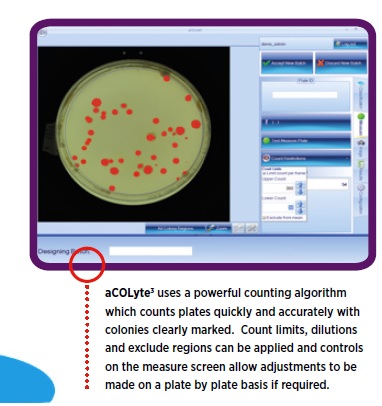

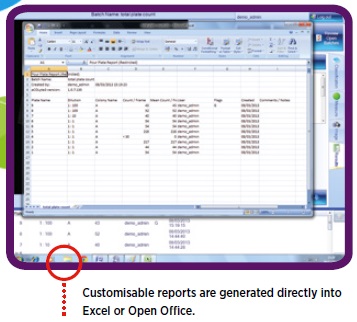

The new aCOLyte 3 HD software uses a powerful new algorithm for colony counting on pour and spiral plates which until now were only found on the advanced ProtoCOL 3 models. Plates are automatically counted with results directly transferred to Excel or Open office.
The new style aCOLyte 3 HD accepts plates up to 90mm diameter. Lighting is provided by LEDs mounted above and below the sample area for both transmitted and epi illumination. A detachable screen can be used to eliminate strong ambient light if required.
aCOLyte 3 HD can be used with any conforming laptop or desktop PC and connects simply by using a USB port.
| PC connection | USB |
| Resolution | For standard 90mm petri dishes, smallest detectable colony better than 0.1mm |
| Illumination | Long-life upper and lower LED arrays with darkfield and brightfield |
| Power input | 110/240v |
| Minimum PC specification |
Processor: Intel Core 2 or Core i processor 2.13 GHz or better 2Gb RAM, 4Gb recommended CD-Rom drive (required for software installation) 2 free independent USB 2.0 ports, at least one of which supports hi-speed mode. Note that there are three possible port speeds with USB 2.0: Lo-speed (1.5Mbps), full-speed (12Mbps) and hi-speed (up to 480Mbps). The aCOLyte camera requires a hi-speed port Operating system: Windows XP Professional 32 bit version Service Pack 3 or Windows 7 Professional 32 bit and 64 bit version |
Applications
aCOLyte 3 HD can be used for total viable counts in many environmental, food monitoring, pharmaceutical, clinical, and molecular biology applications.
Examples would include:
- E.coli, Enterococcus faecalis, Salmonella spp, and mixed organisms on plate count or nutrient agar.
- Staphylococcus aureus, and mixed organisms on plate count agar, columbia blood agar, or nutrient agar.
- E.coli on LB medium, and yeast on potato dextrose agar.
